 Products introduction

Match-well axial fan is mainly applicable for HVAC outdoor units,ranging from 450mm to 800mm,metal or plastic fan structure and can be  supported  with  variety  of  high  ef?ciency,low noise axial ventilating fan.

Product Composition

Axial fan, motor, motor bracket, protective guard, sheet metal

wind scooper.

Fan Selection Environment Conditions

Environmental Temperature:-20 ℃ ~ + 60 ℃;

Relative Humidity: 95% ;

Height: more than 1000 m;

Power Supply: 220-240V 50Hz/60Hz (Single Phase)； 380V 50Hz/60Hz(Three Phase);

Vibration: 10 ~ 55 Hz; Double Amplitude: 1.5 mm.

Fan model that

Performance Range

Air Volume: 100 m3 / h ~ 30000 m3 / h; Motor Poles: 4,6,8,10,12;

Protection level: IP44, IP54;

Speed: single speed ,double speed or more; Insulation:class B or F

Design for : Continous (S1)；

Applications

Air-conditioning units:Air-cooled heat pumps,chillers condensing unit,constant temperature and humidity units,dehumidi?ers,computer room air conditioners; Refrigeration equipments:Cold storage coolers,condensing units;

Electrical equiments:Dry-type transformers,electrical control cabinet;

Ventilation project:Duct ventilation,pump drainage; Industrial cooling equipments and closed cooling tower,etc.

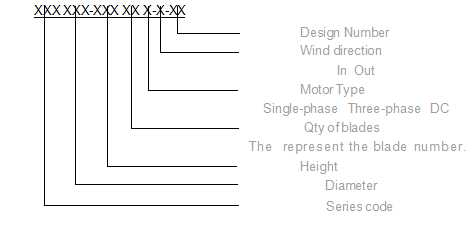

Example of Model

Series : ZFA

 Diameter :800

 Impeller height:120

Qty of blades:7

Power: Single phase

Direction of air ?ow: P

Design No:2
